Volkswagen Crafter

New Volkswagen Crafter Engine

Genuine new 2.0 TDI (EA189 / EA288) and classic 5-cylinder 2.5 TDI engines for both generations of the VW Crafter - Mk1 (2006–2016) and Mk2 (2017 – present).
Full 12-month warranty, EU-wide delivery within 5 working days and a price by VIN and engine code within 1 hour.

Get a price
Volkswagen Crafter

VW's large van - two generations, two engine worlds

The VW Crafter is the top-line van in the 3.0 – 5.5 t segment. The first generation (Mk1, 2006–2016) was built on the Mercedes Sprinter platform but with VW running gear - 5-cylinder 2.5 TDI and later 4-cylinder 2.0 TDI. The second generation (Mk2, 2017+) is a pure VW design shared with the MAN TGE, exclusively running the 2.0 TDI EA288 family.

We supply brand-new engines direct from the original manufacturer - not reman, not „as-new“. Every unit comes with full service documentation, compatibility verified by VIN, and we deliver it across the EU within 5 working days.

Get a price for my Crafter

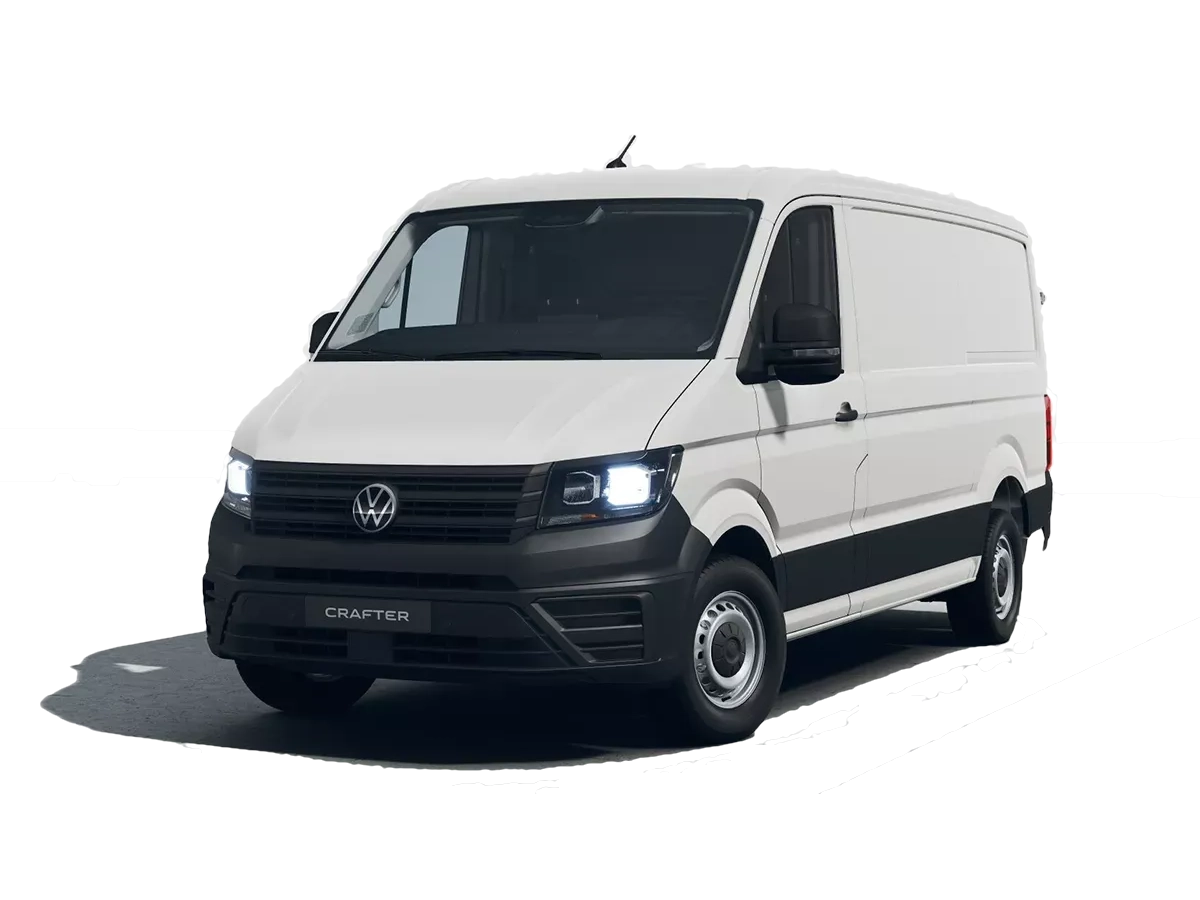

Volkswagen Crafter - van with new 2.0 TDI / 2.5 TDI engine
Engines by generation

Which VW Crafter engines we supply

We cover all common engine codes for the Crafter Mk1 (2006–2016) and Mk2 (2017 – present) - from the 5-cylinder 2.5 TDI through the Bi-TDI variants CKT / CSL to the modern 2.0 TDI EA288 shared with the MAN TGE.

2.0 TDI

VW Crafter 2.0 TDI (EA189 / EA288)

Displacement
1 968 cm³
Power
80 - 130 kW (109 - 177 hp)
Years built
2011 - present
Variants
Euro 5 - Euro 6d
Engine codes by generation
  • Mk1 (EA189) Single CKT, CKTB, CKTC, CKU, CKUB, CKUC
  • Mk1 (EA189) Bi-TDI CSL, CSLA, CSLB, CSLC, CSN, CSNA
  • Mk1 BlueTDI CEB, CEBA, CEBB, CEC, CECA, CECB
  • Mk2 (EA288) 102 hp DAS, DASB, DAUA, DAVA, BAU
  • Mk2 (EA288) 122 hp DAUB, DAVB, DAWB
  • Mk2 (EA288) 140 hp DAUC, DAUE, DAVD, DAVE, DAWA
  • Mk2 Bi-TDI 177 hp DAUF, DAVF, DAVG, DAWF
  • Mk2 Euro 6d DLAA, DLAB

The most widely used engine line in the Crafter - in the Mk1 it replaced the older 2.5 TDI 5-cylinders (from 2011), in the Mk2 it is the only option. Bosch CRI3 common rail with a toothed timing belt and an AdBlue SCR system on Euro 6 versions. The Mk2 EA288 engines are identical to those in the MAN TGE - codes match exactly.

Price for the 2.0 TDI engine
2.5 TDI

VW Crafter 2.5 TDI - 5-cylinder (Mk1)

Displacement
2 461 cm³
Power
65 - 120 kW (88 - 163 hp)
Years built
2006 - 2011
Variants
Euro 4 - Euro 5
Engine codes by power output
  • 88 hp BJJ
  • 109 hp BJK
  • 136 hp BJL
  • 163 hp BJM

The classic 5-cylinder turbodiesel with Pumpe-Düse (PD) injection - used in the first-generation Crafter NCV3 until 2011. Known for its unmistakable sound and high low-end torque. Suitable for vehicles that want to keep the original configuration of the older Crafter Mk1.

Price for the 2.5 TDI engine

Could not find your engine code here, or unsure which engine your vehicle has?

Send us the VIN - we will read out the exact engine code, generation and all technical parameters. You will have the price and availability in your inbox within a few hours.

Get a price by VIN
Parts

Parts for the VW Crafter

In addition to whole engines we supply all key components - so you avoid sourcing parts from five different suppliers and losing days waiting for „the last one“.

Garrett / BorgWarner / IHI turbo

VNT turbo for the 2.0 TDI EA189 and EA288, sequential Bi-Turbo (Garrett + IHI) for the Bi-TDI variants CSL / CSN and DAUF / DAVF. Including actuators and gaskets.

Bosch / Siemens injectors

Bosch CRI2 / CRI3 common rail for the 2.0 TDI and Pumpe-Düse units for the 2.5 TDI BJJ–BJM. With coding data for IMA programming into the ECU.

High-pressure pump

Bosch CP4.1 for the EA288 (Mk2), CP3 for the EA189 (Mk1). On the 2.5 TDI it is a tandem vacuum + fuel pump. Prone to fuel contamination - we recommend filtration as well.

Timing

The 2.0 TDI EA189 and EA288 use a toothed timing belt, the 2.5 TDI uses a toothed belt with a 120,000 km service interval. Kits include the water pump and tensioners.

Cylinder head

Fully assembled 2.0 TDI and 2.5 TDI 5-cylinder heads. Heads for BJK / BJL / BJM are specific to the Crafter Mk1. A solution for engine overheating or a cracked head.

Clutch and flywheel

Three-piece clutch kits and dual-mass flywheels for the 6-speed manual Mk1, 6-speed manual Mk2 and 8-speed automatic (8AT) for the Bi-Turbo versions. Genuine Sachs / LuK.

Choose the scope, we cover the rest

Three options for three scenarios - from a complete swap to an economical solution for workshops with their own parts.

Detailed comparison of engine types
New short block No accessories

New short block

Lower upfront price and the option to fit your existing accessories.

  • Engine block
  • Crankshaft
  • Crankshaft bearings
  • Connecting rod set
  • Pistons
from 2 290 €
Get a price
Most popular
New long block Best price-to-value ratio

New long block

The most frequently bought option. The engine core including the cylinder head.

  • Everything from the short block
  • Cylinder head, head gasket
  • Valves, valve cover
  • Camshafts
  • Oil sump
from 3 990 €
Get a price
New complete engine Ready to install

New complete engine

A fully dressed engine. Built on the long block and includes all accessories.

  • Everything from the long block
  • Wiring loom and sensors
  • Injection system, intake, turbo
  • Alternator, starter, A/C compressor
  • Timing, exhaust, pumps, flywheel
from 8 100 €
Get a price
Why new

A reman for the Crafter usually does not pay off

The VW Crafter is a typical fleet and trade van that exceeds 40,000+ km a year. With a reman you have no certainty about how many kilometres the original block did, what quality the replacement parts were or whether it was overheated. The 2.0 TDI EA288 has a fuel system that is sensitive to component quality on top of that - the second repair usually arrives within six months.

A new engine has a clear 0 km, full warranty and no doubts. Under intensive use it works out cheaper in the long run - the Crafter sits at the workshop once, not four times.

Reman vs. new - full comparison

  • 12-month warranty

    Full manufacturer warranty - no exceptions, no curtailment for normal wear and tear.

  • Delivery within 5 days

    Standard for 2.0 TDI and 2.5 TDI. Special codes within 7 - 10 days.

  • Free VIN check

    Before ordering we verify the exact engine code so it fits your Crafter.
